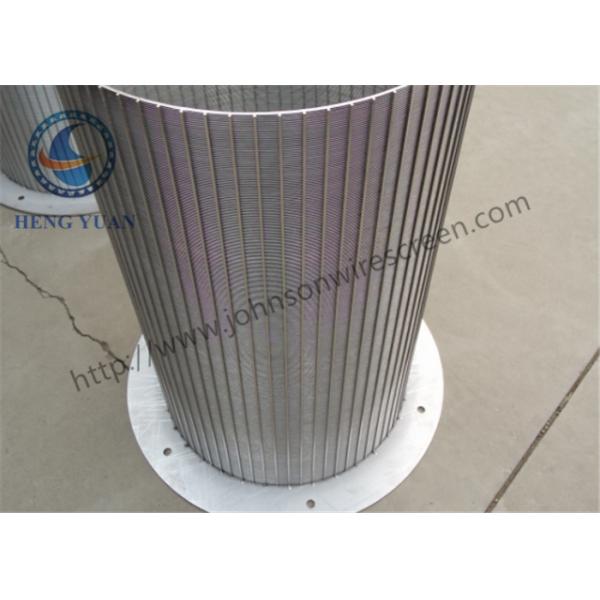

Stainless Steel 316 Reverse Johnson Screen Rotary Screen Drum Cylinder Back Flush Screen
Product Description:
Reverse Wedge wire screen cylinder is made by Johnson screen mesh through reverse welding. The liquid flow from inside to outside. It is with V shape cross- section of the stainless steel wire welded on framework, precision filter slot fromed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.
.
Specification:
| Material |
Stainless steel |
| Grade |
16L |
| I.D |
150-1000 mm, 560 MM |
| Slot Size |
0.1 - 30 mm, 0.75 mm |
| Components |
Flange |
| Length |
300-3000mm, 800 mm, |
| Filter type |
From inside to outside |
| Wire size |
2*3.5 mm |
| Support rod |
3*4.6 mm |
| Wire shape |
V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Filter Type: from inside to outside.
The wedge wire is circle, and the support rod is vertical.
Other components : Flange, stiffener, lifting handle, and other type components by request.
Special specification can be made according to your need.
Advantages:
More effective
adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filtration and more effective
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
High corrosion resistance
Stainless steel have the high corrosion resistance.
Back flush
Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.
Better practicality
Apply to Built-in scraper, brush, suction first class cleaning device.
Industry:
Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.
